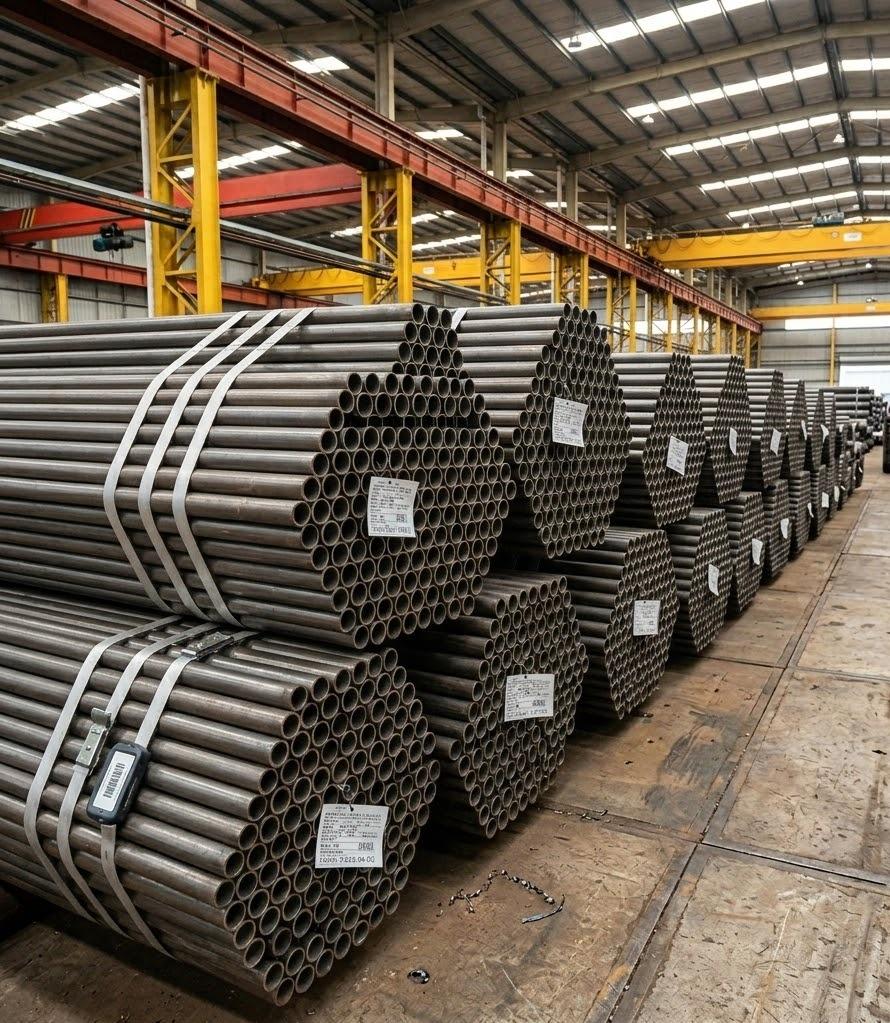

1-5/8 Chromoly Tubing Suppliers
1-5/8 inch 4130 Chromoly Tubing is widely used in motorsport chassis fabrication, aerospace structures, roll cages, bicycle frames, aircraft components, and high-strength mechanical assemblies. The material offers an excellent combination of strength, toughness, weldability, and weight reduction compared to conventional carbon steel tubing.
Siddhgiri Overseas supplies 1-5/8 Chromoly Tubing in seamless and welded forms with various wall thicknesses, cut lengths, and heat treatment conditions. Material is available with EN 10204 3.1 certification and can be supplied for domestic and export projects.
4130 Chromoly Chemical Composition
| Element | Percentage |
|---|---|
| Carbon (C) | 0.28 - 0.33% |
| Manganese (Mn) | 0.40 - 0.60% |
| Chromium (Cr) | 0.80 - 1.10% |
| Molybdenum (Mo) | 0.15 - 0.25% |
| Silicon (Si) | 0.15 - 0.35% |
| Phosphorus (P) | 0.035% Max |
| Sulfur (S) | 0.040% Max |
Mechanical Properties of 4130 Chromoly Tubing
| Property | Value |
|---|---|
| Tensile Strength | 560 - 760 MPa |
| Yield Strength | 460 MPa Min |
| Elongation | 20% Min |
| Hardness | Approx. 197 HB |
Applications of 1-5/8 Chromoly Tubing
- Roll Cage Fabrication
- Race Car Chassis
- Aircraft Structures
- Bicycle Frames
- Performance Exhaust Systems
- Industrial Engineering Components
- Structural Fabrication
- Defense Equipment
Available Supply Specifications
| Specification | Details |
|---|---|
| Outside Diameter | 1-5/8" (41.28 mm) |
| Wall Thickness | 0.049" to 0.120" |
| Length | Random, Fixed, Cut-to-Length |
| Form | Round Tubing |
| Manufacturing Type | Seamless / Welded |
| Standards | ASTM A519, ASTM A29 |
| Certification | EN 10204 3.1 |
Is 1-5/8 Chromoly Tubing suitable for roll cages?
Yes. 4130 Chromoly Tubing is widely used for roll cage fabrication due to its high strength-to-weight ratio and excellent weldability.
Do you provide cut-to-length tubing?
Yes. Custom cut lengths can be supplied according to project requirements.
Can material be exported worldwide?
Yes. Export packing and documentation support are available for international shipments.
Supplier Evaluation Checklist
Compare supplier stock depth, test support, packaging quality, and on-time delivery performance for reliable project execution.
Why Buyers Choose Siddhgiri Overseas
Quality Confidence
Material supplied with clear documentation and inspection support.
Stock Planning
Dimension matching and cut length planning for project execution.
Delivery Support
Domestic and export shipment support with reliable coordination.
Technical Data Table
| Parameter | Details |
|---|---|
| Material Family | 4130 Chrome Moly Alloy Steel Tubing |
| Standards | ASTM A519, ASTM A29, relevant project specifications |
| Supply Form | Seamless and welded supply options |
| Condition | Annealed, normalized, and cold drawn options |
| Inspection | MTC EN 10204 3.1 and optional third-party inspection |
| Applications | Aerospace, motorsport, fabrication, industrial engineering |
Information Tabs
Used in aerospace components, motorsport structures, fabricated assemblies, and high-strength industrial systems.
Availability depends on OD, wall thickness, finish condition, and quantity. Send your list for stock confirmation.
Include drawings, dimensional tolerance, certification requirement, and delivery location for accurate quotation.
Frequently Asked Questions
Do you provide certification for this product?
Yes. We provide standard material test documentation and optional third-party inspection records.
Can I place mixed size and cut length orders?
Yes. Mixed sizes and custom lengths can be arranged based on stock and production planning.
Do you support export delivery for this page requirement?
Yes. Our logistics team supports packing, dispatch planning, and documentation for international shipments.
Related Main Product Page
For complete product overview, visit 4130 Chrome Moly Pipes and Tubes.
