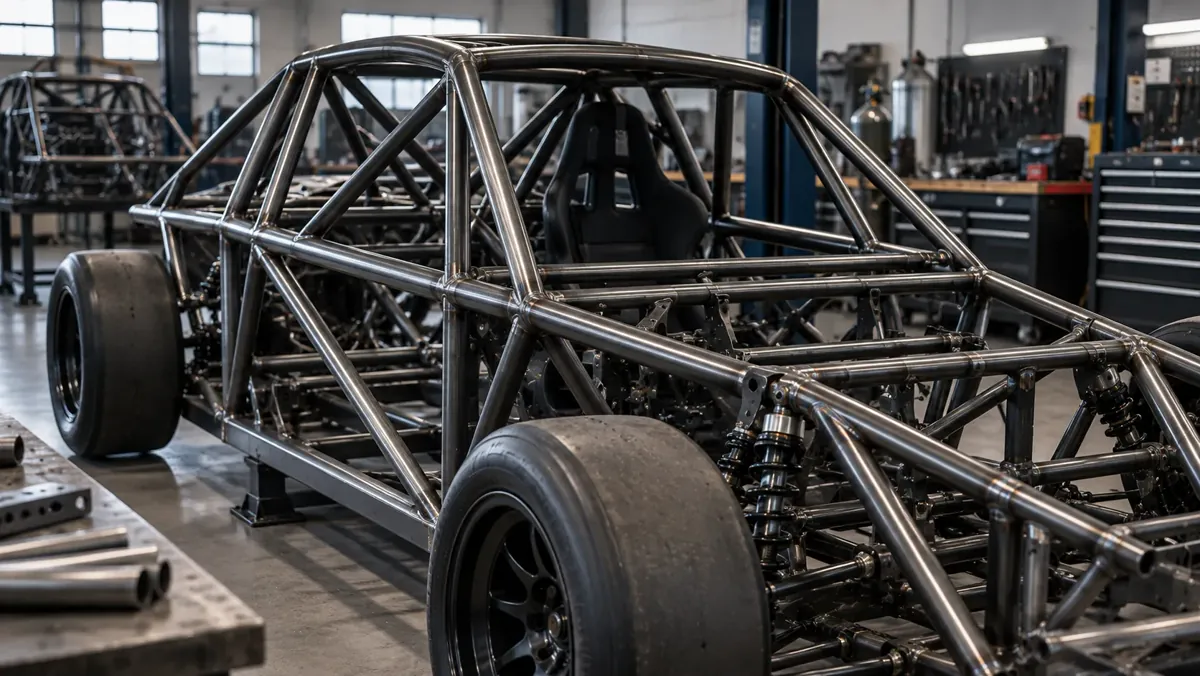

4130 Roll Cage Tubing
A roll cage is the one part of a competition car that has to work perfectly the only time it is needed. 4130 chromoly tubing is chosen for it because it gives the required strength at a lower weight than mild steel.
Why 4130 for Roll Cages
The essential roll cage performance requirement is to maintain structural integrity around the occupant during a rollover. Energy absorption, not just strength, matters — the structure should deform rather than fracture, absorbing energy progressively. 4130 chromoly in its normalised or as-drawn condition has high elongation (good ductility) alongside high yield strength, allowing it to deform before fracturing.
Sanctioning Body Rules — Always Verify
Every major sanctioning body publishes specific minimum OD and wall requirements for different vehicle weight classes and event types. These requirements change between rule editions. Always use the current edition of your specific sanctioning body's safety regulations — not a general online reference — to determine the required tube size. Common examples:
- NHRA: References 4130 chromoly with specific minimum OD and wall for vehicle weight categories
- FIA: International Appendix J for rally and circuit safety structures
- SCCA: Solo and Club Racing GCR safety requirements
This page does not reproduce specific rulebook requirements — those must be obtained from the current official rulebook.
| Specification Parameter | Roll Cage Requirement |
|---|---|
| Material | 4130 Cr-Mo alloy — confirm grade on MTC |
| Form | Seamless (CDS) — weld seam is not acceptable for structural safety tube |
| OD and Wall | Per applicable rulebook — verify current edition |
| Condition | As-drawn CDS or normalized — per rulebook |
| Documentation | MTC confirming 4130 grade for tech inspection |
| Weld process | TIG (GTAW) — standard for 4130 roll cage welding |
From Tube to Finished Cage
- Read the rules. Find the minimum tube diameter, wall and material for your vehicle weight and class.
- Draw the cage. List every member with its size and developed length.
- Order the tube. Seamless 4130, normalized, with a mill test certificate, in lengths that let each hoop be bent from one piece.
- Bend and notch. Use dies matched to the tube diameter and keep joints tight.
- Weld. Clean joints, correct filler and slow cooling.
- Document. Keep the certificate and heat numbers with the car's papers.
- Protect. Prime and paint promptly.
The sizing rules are explained in the roll cage tubing size guide, and the reasons for choosing the alloy under 4130 tubing for roll cages. Common cage diameters have their own pages: 1.500", 1.625" and 1.750".
Frequently Asked Questions
Can I use DOM tubing for a 4130 roll cage?
DOM is a mild steel product, not 4130 chromoly. If the rulebook specifies '4130 chromoly', you must use seamless 4130 alloy — not DOM. Some classes permit DOM mild steel but with heavier walls. Verify your class rules.
Does my roll cage material need to be certified?
Many tech inspectors accept the MTC as proof of material grade. Some events require the MTC to be available at tech. At minimum, the tubing should be purchased from a supplier who provides MTC 3.1 so that the material grade can be verified if required.
What condition should roll cage tubing be ordered in?
Normalized, unless your regulations say otherwise. It bends and welds predictably.
Source 4130 Roll Cage Tubing
Provide your required OD, wall (from your rulebook), total footage, and MTC requirement for a roll cage tubing quotation.
- OD & Wall (from applicable rulebook)
- Vehicle weight class
- Sanctioning body and class
- Total footage
- MTC requirement
- Delivery
