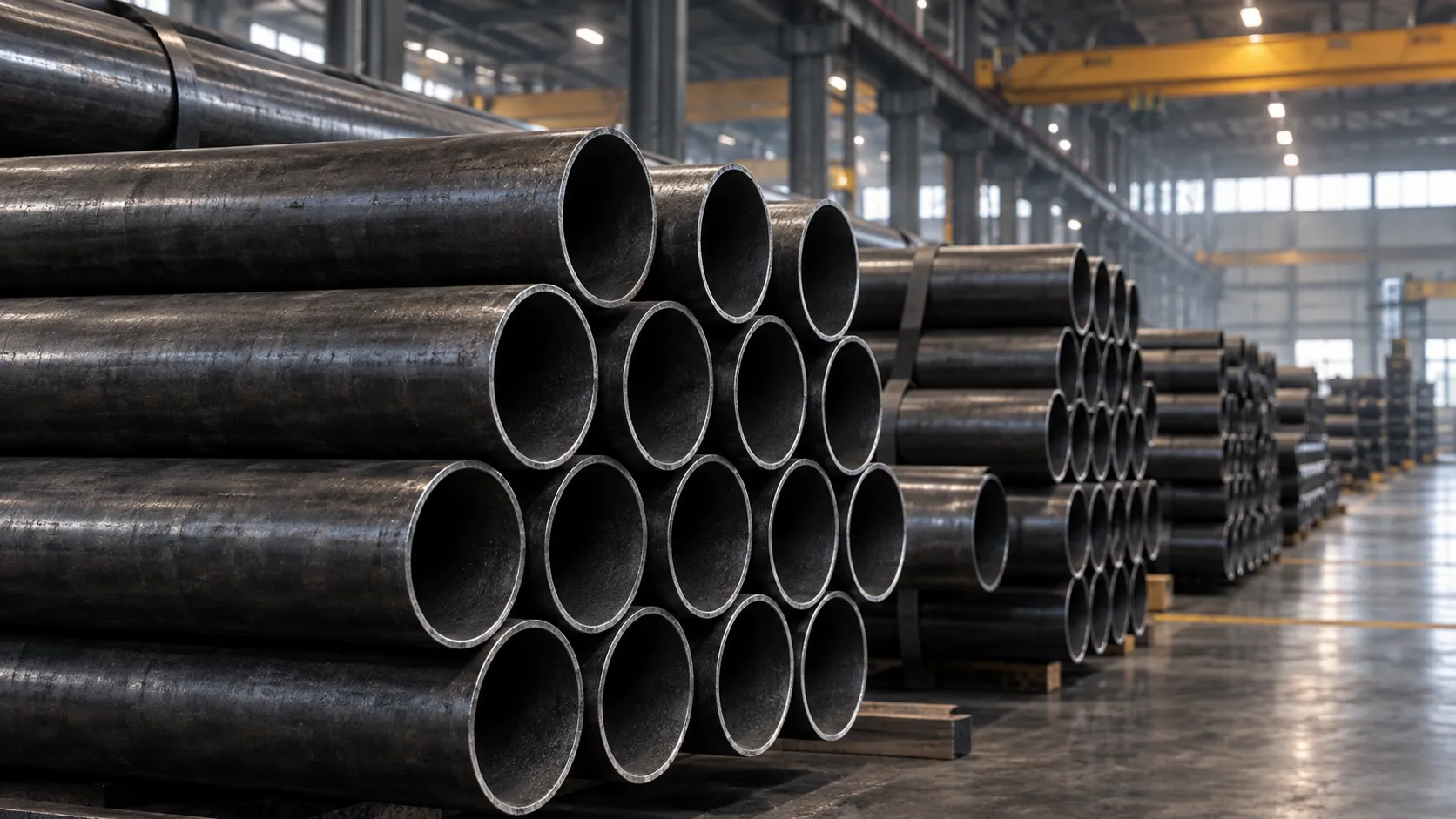

4130 Seamless Tubing
Seamless is the standard form of 4130 tubing. The tube is made by piercing a solid billet, so there is no longitudinal weld, and the wall has the same properties all the way round.
Why Seamless Matters for 4130
4130's elevated carbon equivalent — driven by its chromium and molybdenum additions — makes it difficult to weld using the high-speed electric resistance welding (ERW) process used for standard welded tubing. The rapid heating and cooling of ERW can create brittle martensite in the weld zone of 4130. This is why 4130 chromoly tubing is almost exclusively produced and supplied in seamless form rather than welded form.
For applications such as roll cages, aircraft airframes, and hydraulic pressure lines, the absence of a weld seam also provides isotropic strength — equal resistance to loading from any direction — and eliminates the weld zone as a potential fatigue initiation site.
Cold Drawn Seamless (CDS) vs. Hot Finished Seamless (HFS)
Seamless tubing can be produced in two primary finished conditions:
- Cold Drawn Seamless (CDS): After the initial seamless forming, the tube is drawn through dies at ambient temperature. This work-hardens the surface, improves dimensional accuracy, and produces a clean, bright surface finish. Standard for most 4130 structural and aerospace applications.
- Hot Finished Seamless (HFS): Finished at elevated temperature. Produces a scaled surface finish and broader dimensional tolerances. Used for heavier-wall, larger-diameter applications where cold drawing is not practical.
For most engineering applications, specify Cold Drawn Seamless unless Hot Finished is specifically required.
| Parameter | Cold Drawn Seamless (CDS) | Hot Finished Seamless (HFS) |
|---|---|---|
| Surface finish | Bright, clean, scale-free | Scaled — as hot-rolled |
| Dimensional tolerance | Tighter (per ASTM A519 CDS) | Broader |
| Typical OD range | Smaller to medium OD | Medium to larger OD |
| Primary use | Structural, aerospace, motorsport | Heavy machining, larger industrial |
| Weld seam | None | None |
| Standard (typical) | ASTM A519 CDS section | ASTM A519 HFS section |
Confirming and Ordering Seamless Tube
You cannot always see whether a tube is seamless. Drawn-over-mandrel welded tube has its seam worked until it is nearly invisible. The reliable evidence is the paperwork: the mill test certificate names the standard and the manufacturing process, and ASTM A519 covers seamless tubing only.
When ordering, say whether you need cold drawn or hot finished tube. Cold drawn gives close tolerances and a smooth surface in small and medium sizes. Hot finished covers larger diameters and heavy walls with wider tolerances. Then give OD, wall, condition and length. The two forms are described under cold drawn tubing and hot finished seamless tubing, and the comparison with welded tube is on seamless vs welded.
Frequently Asked Questions
Why is 4130 almost always supplied seamless rather than welded?
4130's alloying content (chromium and molybdenum) increases its carbon equivalent value, making it prone to forming brittle martensite in the weld heat-affected zone when welded by high-speed electric resistance welding. Seamless manufacture avoids this entirely and is the standard for this grade.
Does seamless 4130 tubing need to be specified explicitly?
Yes. While 4130 tubing is supplied seamless by default, explicitly stating 'seamless' (or 'CDS') on the purchase order ensures there is no ambiguity and documents the requirement for the MTC.
How can I confirm my 4130 tubing is seamless?
Check the mill test certificate. It states the standard and the process of manufacture.
Is seamless 4130 tubing pressure tested?
ASTM A519 is a mechanical tubing standard and does not require a pressure test by default. Testing can be added as an order requirement.
Source 4130 Seamless Tubing
Specify your required OD, wall, form (CDS or HFS), and standard for an accurate quotation.
- OD and Wall
- Form (Cold Drawn Seamless preferred)
- Applicable Standard
- Condition
- Footage / Tonnage
- MTC Requirement
- Delivery Location
