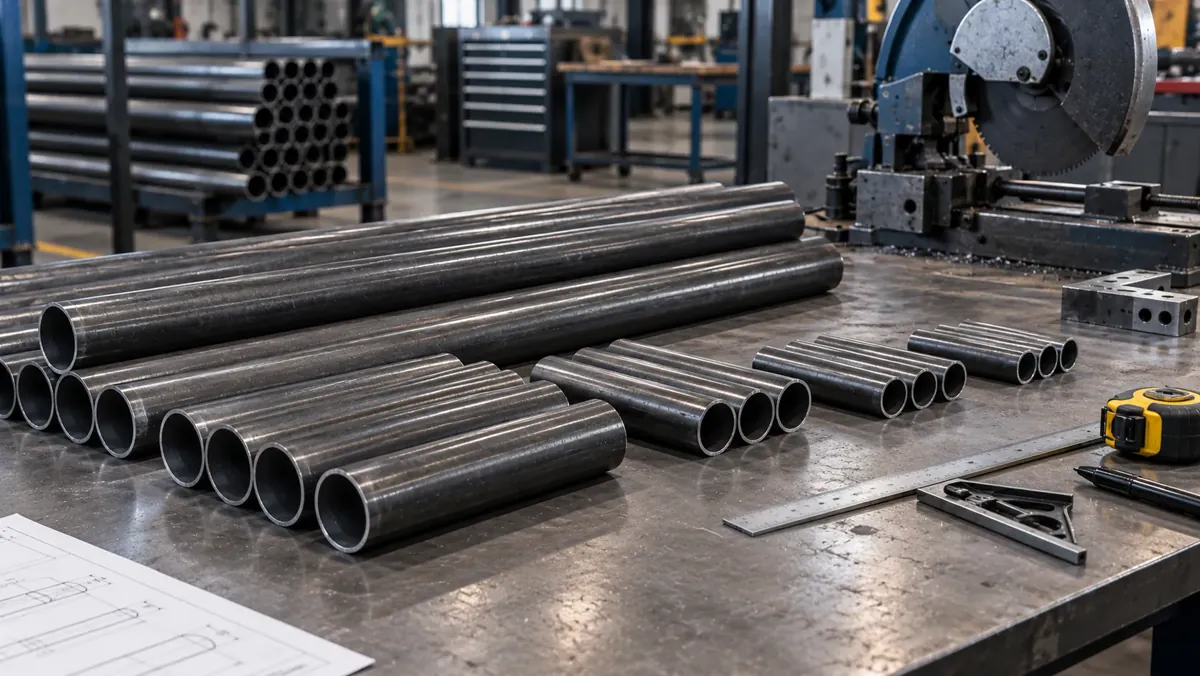

Custom Cut 4130 Tubing
Custom cut supply suits one-off jobs: a prototype, a repair, a single frame. You buy the pieces you need instead of full mill lengths that would leave most of the tube unused.
What to Specify for Custom Cut Supply
For custom cut orders, specify:
- OD and wall (the tube specification)
- Required cut length(s) in inches or mm
- Cut length tolerance (±1/8" or tighter as required)
- Number of pieces at each length
- Square or miter cut end requirement (if applicable)
- Deburring requirement (specify if square cut ends must be deburred)
Cut-to-Length vs. Standard Length
Standard 4130 CDS supply is in full mill lengths (typically 20 ft / 6 m, though this varies by supplier and size). Custom cut provides specific lengths at additional cutting cost. For large projects with many cuts, custom cut supply may be more economical in total (reduced workshop labour and scrap) even if the per-foot cost is higher.
| Custom Cut Specification | What to State |
|---|---|
| OD & Wall | Full dimensional specification |
| Cut length | In inches or mm — to required precision |
| Length tolerance | e.g., ±2mm, ±1/8" — state explicitly |
| Quantity per cut length | Number of pieces |
| End condition | Square / burr-free / miter angle |
| MTC | EN 10204 3.1 — confirm for all cut pieces |
When Custom Cutting Makes Sense
If a job needs three feet of a size you will never use again, a full twenty-foot length is poor value. Buying cut pieces keeps cost and storage down. It also makes small parcels practical to ship, since short pieces can travel by courier or air freight where full lengths need a truck or a container.
Allow for fabrication when you choose lengths. A tube that will be notched at both ends or trimmed after bending should be ordered longer than the finished part. If you are unsure, state the finished length and what will be done to the tube. For larger, repeated requirements see cut to length supply for production; for the underlying service see cut to length services.
Frequently Asked Questions
Does the MTC remain valid for custom-cut pieces?
Yes. The MTC is issued for the heat lot of the full-length tube. Cut pieces from that heat lot retain the same heat lot traceability. The MTC applies to all cut pieces from the same heat of material.
Can I order a single short piece of 4130 tubing?
Send the size and length. Short pieces of available sizes can often be supplied.
How much extra length should I allow for notching?
Enough to cover the depth of the notch at each end plus a trimming allowance. If in doubt, give the finished length and the joint type.
Can short pieces be sent by courier?
Short, light pieces can often travel by courier or air freight.
Place a Custom Cut 4130 Order
Provide OD, wall, cut lengths, quantities per length, tolerance, and MTC requirement.
- OD & Wall
- Cut lengths and quantities
- Length tolerance
- End condition
- Standard
- MTC
- Delivery
