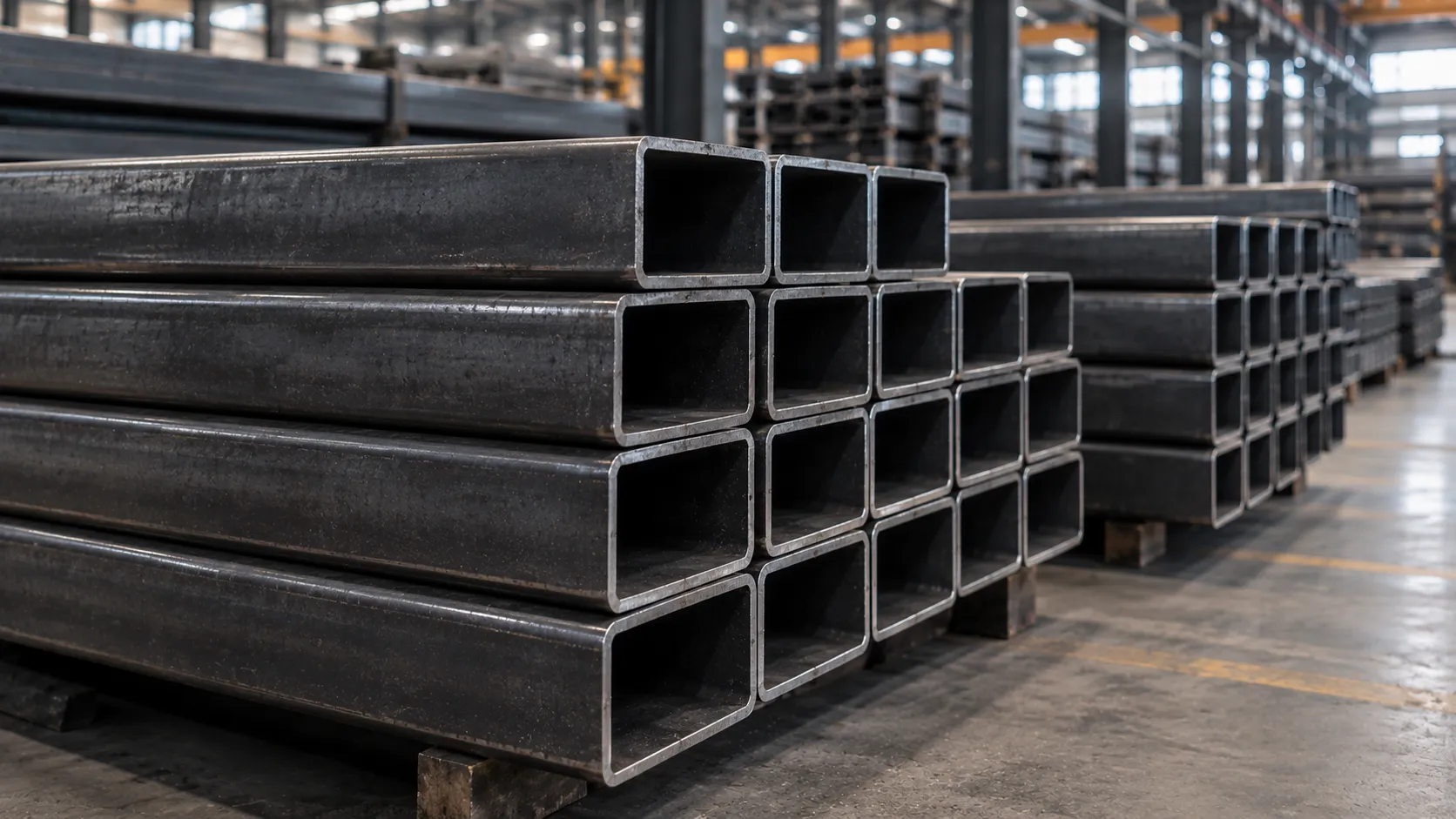

4130 Rectangular Tubing

Standard Commercial Reality

Rectangular hollow sections (RHS) in structural steel are commonly produced in lower-carbon welded steel (e.g., ASTM A500, EN 10219). These are not 4130 alloy. If a design specifies 4130 alloy in a rectangular cross-section, it typically reflects a design intent that should be reviewed for feasibility:

1. Can the same load case be achieved with a round 4130 tube of equivalent section modulus?
2. Can a heavier-wall round tube achieve the required stiffness?
3. Is the 4130 alloy actually required, or can a structural steel RHS meet the load requirement with adequate safety factor?

When to Seek a Design Review

Non-standard cross-section specifications in safety-critical structures should always be reviewed by a qualified engineer before procurement. Changing a round tube design to a rectangular section (or vice versa) changes the load path, joint geometry, and section efficiency in ways that require structural recalculation.

Getting Rectangular Stiffness From Round Tube

Designers reach for rectangular section to gain depth. The same effect can be had from round 4130 tube in three ways. A larger-diameter round tube increases stiffness in every direction for modest weight. Two round tubes spaced apart and joined by short webs or diagonals form a light truss that is very stiff in the plane of the spacing. And a round tube with a welded gusset or capping strip stiffens a local area.

Where a rectangular steel section really is required, structural hollow sections in carbon steel are widely available and should be sized for their own strength. Mixing them with 4130 members in one structure is possible, with attention to welding procedure. Send the loads or the section you had in mind and the closest round option can be suggested. See square tubing for fabricated alternatives and round tubing for the standard form.
