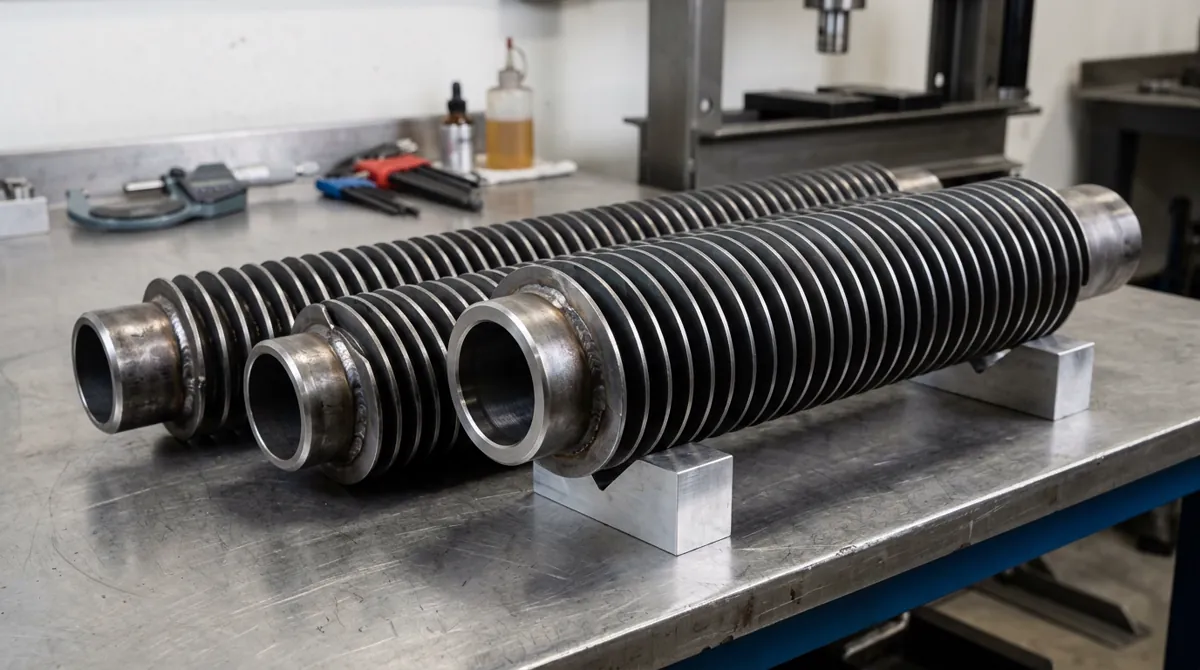

4130 Chromoly for Finned Tubing
A finned tube is a heat exchanger tube with fins attached to increase its surface area. The base tube is selected for the fluid inside it and the fin for the air or gas outside, and 4130 is not a usual choice for either.
Is 4130 Suitable for Finned Tubing?
Finned tubing is used in heat exchangers to increase surface area for thermal transfer. These tubes are typically manufactured from materials with high thermal conductivity or specific corrosion resistance (copper alloys, aluminium, carbon steel boiler tube).
Standard 4130 mechanical tubing (ASTM A519) is not manufactured as a finned product. While fins could theoretically be welded to a 4130 tube, standard carbon steel or specialized heat exchanger alloys are the correct specification for thermal transfer applications.
What to Specify for Finned Tubes
Fins are wound, embedded, extruded or welded onto a base tube. The base tube is normally a heat exchanger or boiler tube grade so that it can be pressure tested and welded into a header.
| Component | Materials normally used |
|---|---|
| Base tube, general duty | Carbon steel to ASTM A179 or A192 |
| Base tube, corrosive or hot duty | Stainless steel or Cr-Mo grades to ASTM A213 |
| Fins | Aluminium, copper or carbon steel |
4130 has a higher carbon content than these tube grades, which makes fin welding and header welding more demanding, and it offers no corrosion resistance. A finned tube supplier will quote against the base tube standard you name. The pressure tube distinction is explained under boiler tubing.
Choosing a Fin Type
Fin type depends on temperature and environment. Wrapped aluminium fins are economical for low temperatures. Embedded fins sit in a groove in the tube wall and tolerate more heat. Extruded fins protect the base tube from the atmosphere. Welded steel fins are used at the highest temperatures and in fouling conditions. The base tube must suit the chosen process, which is another reason heat exchanger tube grades are used.
Frequently Asked Questions
Is 4130 used as a base tube for finned tubes?
Not normally. Base tubes are usually carbon steel, stainless or boiler-grade Cr-Mo tubes made to heat exchanger standards.
Can fins be welded to 4130 tube?
It is possible but uncommon, and the welding needs care because of the alloy's carbon content.
What information does a finned tube enquiry need?
The base tube standard and size, fin type, fin material, fin height and spacing, and the finned length.
Which fin type suits high temperatures?
Welded steel fins, or embedded fins for intermediate temperatures.
What are finned tubes used for?
Air coolers, economisers, heaters and other exchangers where one fluid is a gas.
